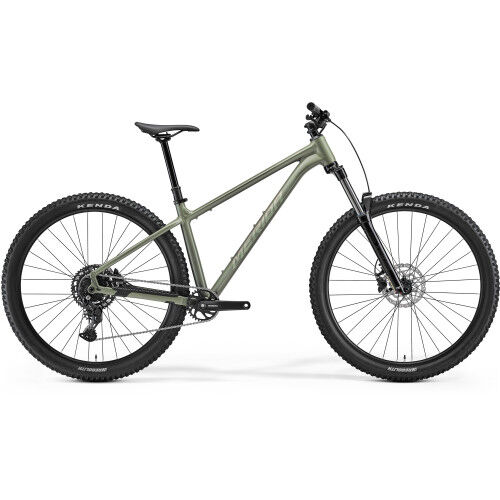

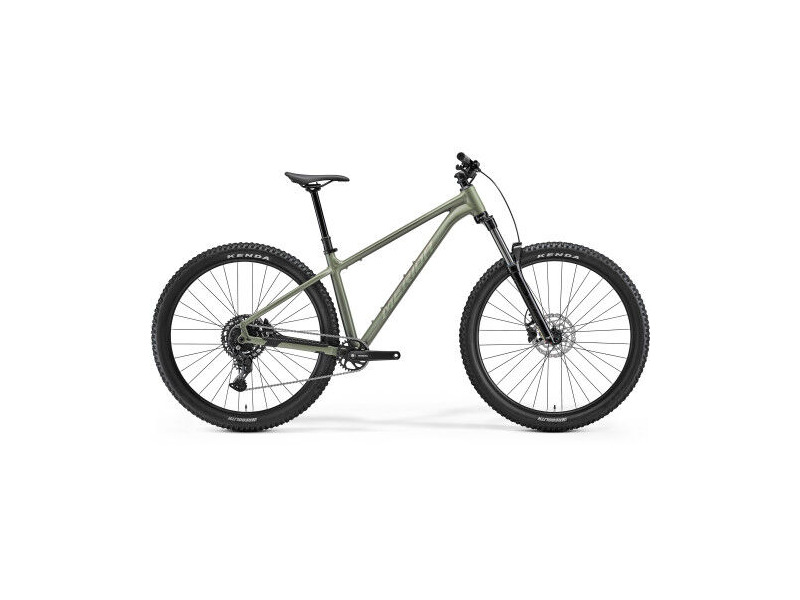

MERIDA Big Trail 300
Pricing
£1000.00
| Model Year | 2027 |
|---|---|
| Options | XS Silk Anaconda Green (Green Out Of Stock S Silk Anaconda Green (Green In Stock (Warehouse) M Silk Anaconda Green (Green Out Of Stock L Silk Anaconda Green (Green Out Of Stock XL Silk Anaconda Green (Green Out Of Stock |
| Style | Modern trail bike geometry with long reach, slack head angle and steep seat angle 140mm Air sprung fork 1 x 9 Shimano CUES drivetrain Shimano MT200 hydraulic disc brakes Dropper seat post 29" Boost standard wheels with 2.4" tyres The same fun handling and trail taming performance as its bigger brothers, but in a wallet-friendly specification. This is affordable trail performance at its best. 29" Wheels, 140mm air fork, 1 x 9 drivetrain and a dropper post The original Big Trail concept was the result of a few UK dealers discussing the ideal UK trail bike with the Merida R&D chief - simple: 140mm air fork, 29" wheels, 1 x transmission and a dropper post. Now in its 2nd iteration Big Trail is a fun-packed and hugely capable trail bike. Its progressive geometry combines a steep 76.5° seat angle with a slack 64.0° head angle giving great climbing characteristics and plenty of stability when the terrain gets steep or rough. Sizing follows the Agilometer principle which means most sizes work for most body sizes so that riding style can be factored in. If you want to go fast, take the longer size, for agility, take a shorter size |
| Frame | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29" x 2.5" |
| Forks | SR Suntour XCR34 2CR; Air; 140mm travel; Tapered; lockout; 44mm fork offset; 29x2.4" max. wheel size |
| Rear Derailleur | Shimano CUES U4000 |
| Front Derailleur | N/A |
| Shifters | Rear: Shimano CUES U4000 |
| Chainset | Shimano CUES UT-400-1; 32 teeth; Crank Length: 170mm for all sizes |
| Bottom Bracket | Shimano BB-UN101; 73mm |
| Chain | KMC xGlide |
| Cassette | SunRace U9; CS-U980 9AZ; 11-46 teeth; 9 speed |
| Headset | Acros ICR Merida External neck; Upper and lower IPS sealing |
| Stem | Merida Comp TR; aluminium; 35mm diameter; 0 degree rise |
| Handlebars | Merida Comp TR II; aluminium; 780mm wide; 35mm rise |
| Front Brake | Shimano MT200; 2 piston |
| Rear Brake | Shimano MT200; 2 piston |
| Brake Levers | Shimano MT200 |
| Rims | Merida Comp CC II; 25mm inner rim width; aluminium; tubeless ready |
| Front Hub | Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock |
| Rear Hub | Shimano TC500-HM-B; 148x12mm; 32 Spoke; Centerlock |
| Spokes | Black stainless |
| Tyres | 29" |
| Front Tyre | Kenda Regolith; 29x2.4"; wire |
| Rear Tyre | Kenda Regolith; 29x2.4"; wire |
| Saddle | Merida Comp SL; V-mount |
| Seatpost | Merida Comp TR IV; 34.9mm diameter; in-line; (XShort-Short) - 150mm seat post travel, (Mid-XLong) 170mm seat post travel |
| Pedals | NONE |
| Grips | Merida Comp TR |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
