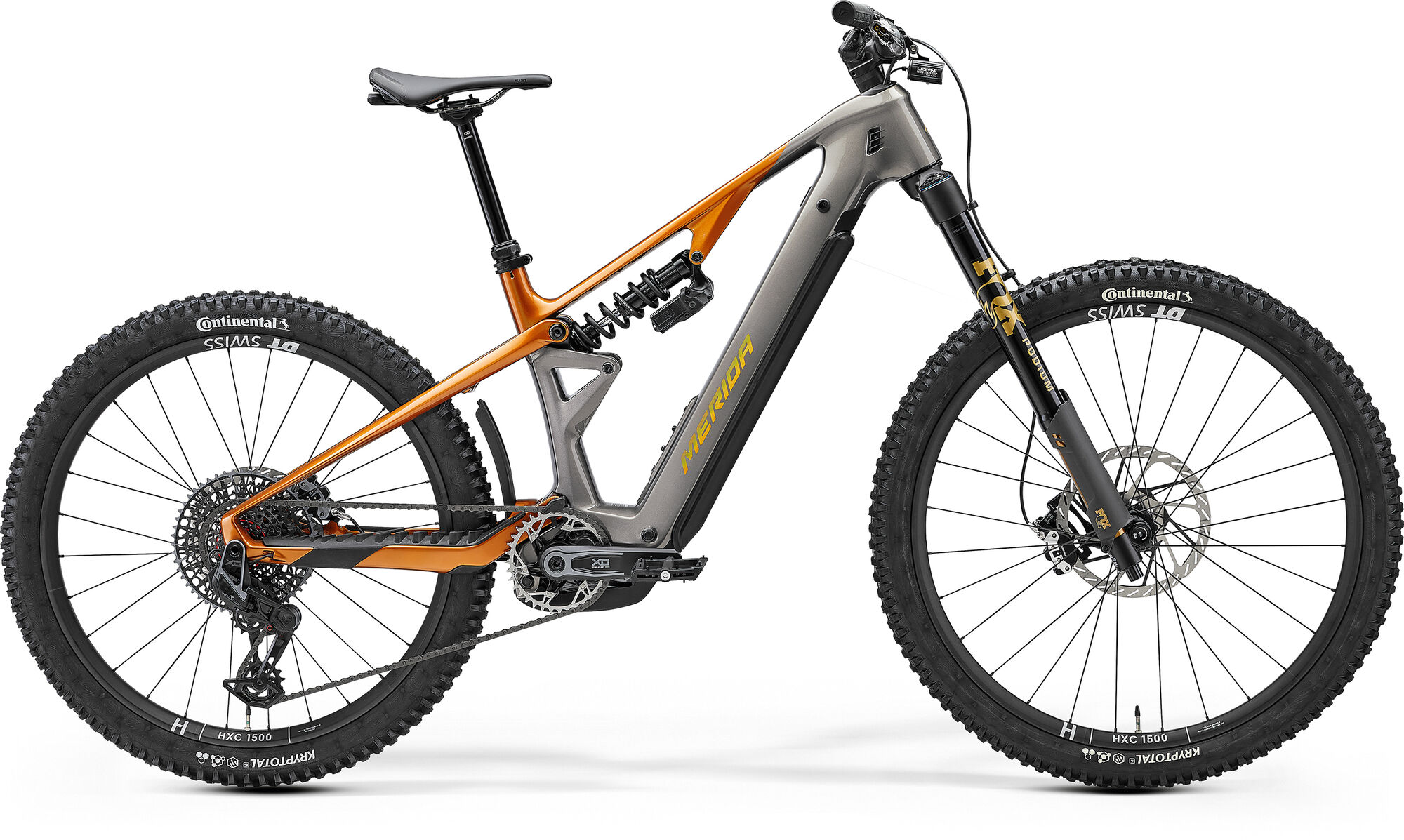

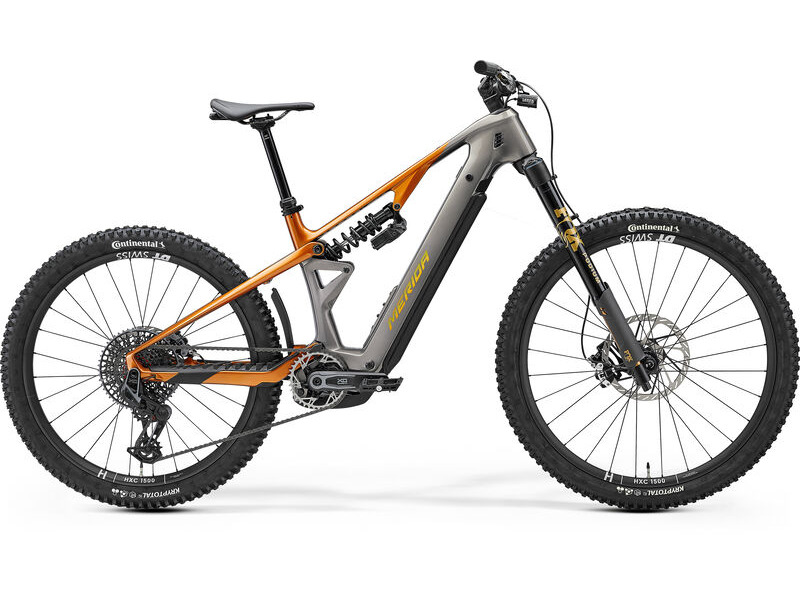

MERIDA Lithos 10K
Pricing
£11000.00
| Model Year | 2026 |
|---|---|
| Options | XShort Grey To Wild Honey(Holo Honey) Out Of Stock Short Grey To Wild Honey(Holo Honey) Out Of Stock Mid Grey To Wild Honey(Holo Honey) In Stock (Warehouse) Long Grey To Wild Honey(Holo Honey) In Stock (Warehouse) XLong Grey To Wild Honey(Holo Honey) In Stock (Warehouse) |
| Style | The ultimate enduro e-MTB. Refined handling and chaos-taming suspension in a flawless package. Designed for riders who want the very best components money can buy on a reliable tough and versatile race ready machine. The Lithos 10K is Merida's ultimate enduro e-MTB with a carbon fibre frame to keep mass low for refined handling along with a new geometry that maximises traction and control on the toughest roughest trails. With the lightweight but hugely powerful Bosch CX-R drive unit and a high-capacity 800 Wh battery it's got the power to tackle big mountain adventures and multi-stage races. The smart Fox DHX Live Valve NEO coil-sprung rear shock automatically adjusts damping support for speed and efficiency whilst up front there's a buttery smooth inverted Fox Podium fork. With a full carbon frame and 170mm of travel at either end it's built for the toughest tracks pushing hard with friends and racing against the clock. The handling has been engineered to help you carry speed no matter what the gradient or ground. The geometry is made to maximise traction on flat turns and confidence on steep sections with a longer chainstay and higher stack while travel-adjustable dropper posts and our AGILOMETER sizing mean you can fine-tune fit and handling. For versatility you can run a lightweight 600 Wh battery (available separately) for agile handling or the standard high-capacity 800 Wh for big days. You have the choice of running a full 29" setup for flat-out speed or the standard mixed 29/27.5" setup to retain plenty of agility. The options don't end there you can route cables cleanly through the WIRE PORT or semi-externally via headtube ports if you need rapid access. |
| Frame | Lithos CF I ; carbon; 160mm travel; 29 x 24 max. tyre size; 148x12mm axle standard intube; |
| Forks | Fox Podium Factory; 170mm travel; tapered; 44mm fork offset; 29x2.6 max tyre size |
| Rear Derailleur | SRAM X0 Eagle Transmission AXS |
| Shifters | SRAM dropper lever MMX and SRAM AXS Pod Ultimate Controller |
| Chainset | SRAM XX Eagle Transmission E-MTB for Bosch; 36 teeth with SRAM XO Eagle E-MTB Crank 160mm all sizes |
| Chain | SRAM X0 Eagle Transmission; Flattop |
| Cassette | SRAM CS XS 1295 T-TYPE 10-51; 12 speed |
| Headset | Acros ICR Merida Integrated neck w/ Blocklock |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount - 40 mm all sizes |
| Handlebars | Race Face Era; 780mm wide |
| Front Brake | SRAM Maven Ultimate; 4 piston calliper with SRAM HS2; 220mm rotor |
| Rear Brake | SRAM Maven Ultimate; 4 piston calliper with SRAM HS2; 200mm rotor |
| Brake Levers | SRAM Maven Ultimate |
| Rims | Part of Wheelset - DT Swiss HXC 1500; 30mm inner rim width; carbon; Tubeless ready (tubeless tape and valves included) |
| Front Hub | Part of Wheelset - DT Swiss HXC 1500; 110x20mm; 6-Bolt |
| Rear Hub | Part of Wheelset - DT Swiss HXC 1500; 148x12mm; 6-Bolt; SRAM XD |
| Tyres | Front: Continental Kryptotal-F; 29x2.4; folding; TR; Enduro casing; Super soft Compound. Rear: Continental Kryptotal-R; 27.5x2.4 ; folding; Enduro casing soft Compound |
| Saddle | Proxim Altius Triox; V-mount adapter; incl. Merida minitool |
| Seatpost | Merida Team TR II; 34.9mm diameter; 0mm layback; all sizes 30-230mm travel |
| Pedals | VP Components VP-532 |
| Grips | Merida Expert TR |
| Rear Shock | Fox Float X Factory Live Valve Neo |
| Battery | Bosch PowerTube 800; 800Wh Bosch Performance Line CX-R |
| Drive Unit | Bosch Performance Line CX-R |
| Accessories | USB REAR Light CG-214RG Front Light, Lezyne Hekto StVZO E350+ Reverse; reverse Merida Custom Mount |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
