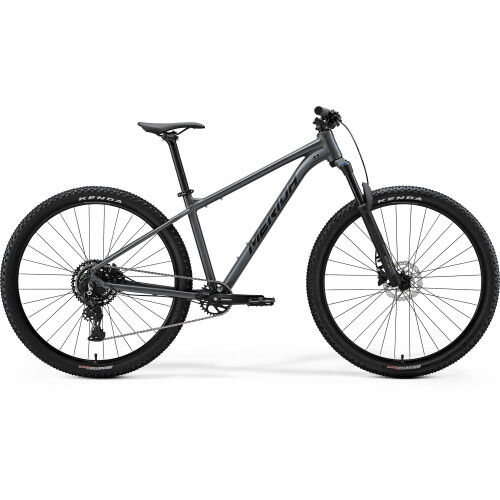

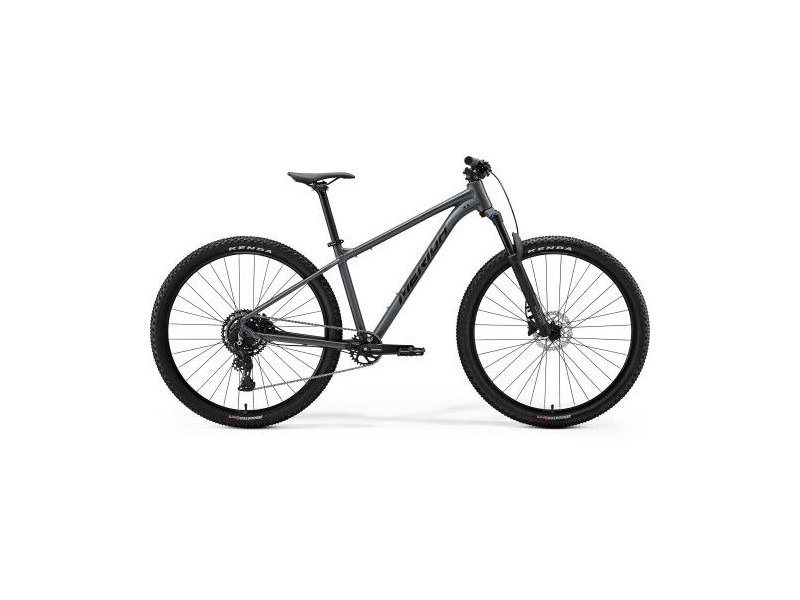

MERIDA Big Nine 40
Pricing
£825.00
| Model Year | 2027 |
|---|---|
| Options | M Silk Dark Grey (Black) In Stock (Warehouse) L Silk Dark Grey (Black) In Stock (Warehouse) XL Silk Dark Grey (Black) In Stock (Warehouse) |
| Style | Updated TFS aluminium frame with clearance for 2.4" tyres Trail ready geometry for confident off-road handling 120mm X-Fusion Migo 32mm stanchion air fork with lockout Shimano MT200 hydraulic disc brakes Shimano 1 x 9 drivetrain 29" wheels with Shimano hubs and Kenda tyres Size tuned Merida finishing kit The start to the "proper" mountain biking journey: 29er aluminium hardtail with trail ready geometry, 120mm air fork with lockout, Shimano 1 x 9 drivetrain and hydraulic disc brakes, Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability. The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power; dropper post ready New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven. |
| Frame | TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.4" |
| Forks | X-Fusion Migo 32 Air; 120mm travel; lockout; 29x2,4" max. wheel size |
| Rear Derailleur | Shimano Cues U4000; GS |
| Front Derailleur | N/A |
| Shifters | Rear: Shimano CUES U4000 |
| Chainset | Shimano Cues UT400-1; 32 teeth; Aluminium ; Crank Length: S -165mm, (M-XXL) - 170mm |
| Bottom Bracket | Shimano UN101 LL123 |
| Chain | KMC xGlide |
| Cassette | SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed |
| Headset | FSA NO.55R/57SC/57B |
| Stem | Merida Comp CC; aluminium; 31.8mm diameter; 7 degree rise |
| Handlebars | Merida Comp CC; aluminium; 15mm rise; S - 720mm, (M-L) - 740mm, (XL-XXL) - 760mm |
| Front Brake | Shimano MT200; hydraulic 2 piston brake |
| Rear Brake | Shimano MT200; hydraulic 2 piston brake |
| Brake Levers | Shimano MT200 |
| Rims | Merida Comp CC; 20mm inner rim width; Aluminium |
| Front Hub | Shimano QC300; 100x9mm; 32 Spoke; Centerlock |
| Rear Hub | Shimano QC300-HM; 135x9mm; 32 Spoke; Centerlock |
| Spokes | Black steel |
| Tyres | Kenda Booster; 29x2.4" |
| Front Tyre | Kenda Booster; 29x2.4" |
| Rear Tyre | Kenda Booster; 29x2.4" |
| Saddle | Merida Comp SL |
| Seatpost | Merida Comp CC; aluminium; 30.9mm diameter; in-line |
| Pedals | VP VPE 536 |
| Grips | Merida Comp TR |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
