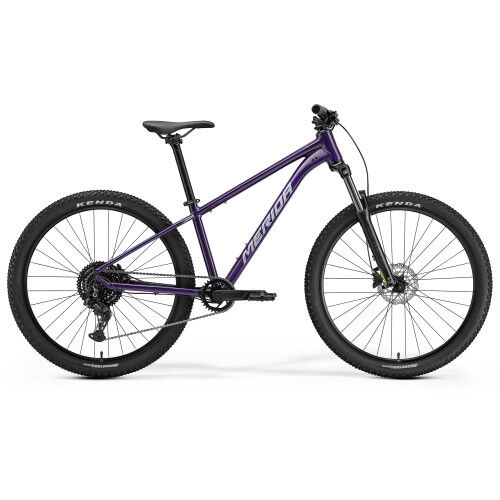

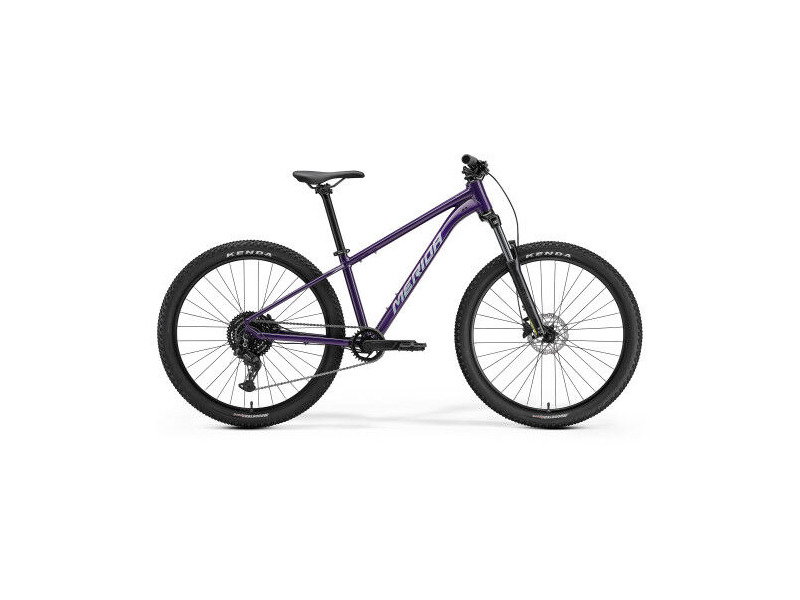

MERIDA Big Seven 20
| Model Year | 2027 |
|---|---|
| Options | XXS Dark Purple (Blue Usually despatched in 7-10 days XS Dark Purple (Blue Usually despatched in 7-10 days S Dark Purple (Blue Usually despatched in 7-10 days |
| Style | Updated TFS aluminium frame with clearance for 2.4" tyres Trail ready geometry for confident off-road handling 120mm Suntour suspension fork Shimano MT200 hydraulic disc brakes Shimano 1 x 8 drivetrain 27.5" wheels with Shimano hubs and Kenda tyres Size tuned Merida finishing kit 650b hardtail with sophisticated TFS aluminium trail ready geometry frame, Shimano 1 x 8 drivetrain, SR Suntour 120mm suspension fork, Shimano hydraulic disc brakes, Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability. The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power; dropper post ready New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven. |
| Frame | TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.4" |
| Forks | SR Suntour XCM32; Coil; 120mm travel; SR Suntour 5TA; 27.5x2.4" max. wheel size |
| Rear Derailleur | Shimano Essa U2000; GS |
| Front Derailleur | N/A |
| Shifters | Rear: Shimano Essa SL-315-8R |
| Chainset | Prowheel Epro-MD26S; 32 teeth; Aluminium; Crank Length: 165mm for all sizes |
| Bottom Bracket | Shimano UN101 LL123 |
| Chain | KMC Z8.3 |
| Cassette | Shimano CS-HG300-8; 11-45 teeth; 8 speed |
| Headset | FSA NO.55R/57SC/57B |
| Stem | Merida Comp CC; aluminium; 31.8mm diameter; 7 degree rise |
| Handlebars | Merida Comp CC; aluminium; 15mm rise; (XXS-XS) - 700mm; S - 720mm |
| Rims | Merida Comp CC; 20mm inner rim width; Aluminium |
| Front Hub | Shimano TX505; for SR Suntour 5TA; 100x9mm; 32 spoke; Centerlock |
| Rear Hub | Shimano QC300-HM; 135x9mm; 32 Spoke; Centerlock |
| Spokes | Black steel |
| Tyres | 27.5" |
| Front Tyre | Kenda Booster; 27.5x2.4 |
| Rear Tyre | Kenda Booster; 27.5x2.4 |
| Saddle | Merida Sport |
| Seatpost | Merida Comp CC; aluminium; 30.9mm diameter; in-line |
| Pedals | VP VPE 536 |
| Grips | Merida EC |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
