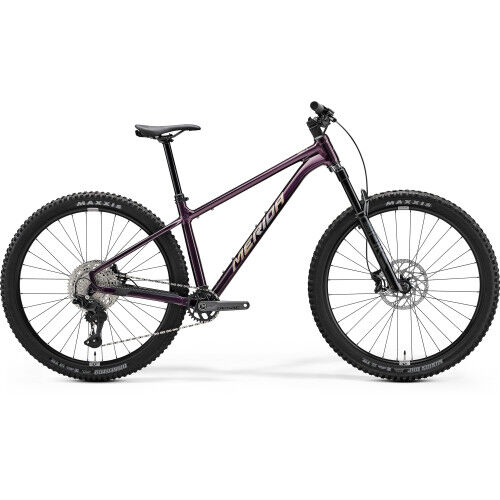

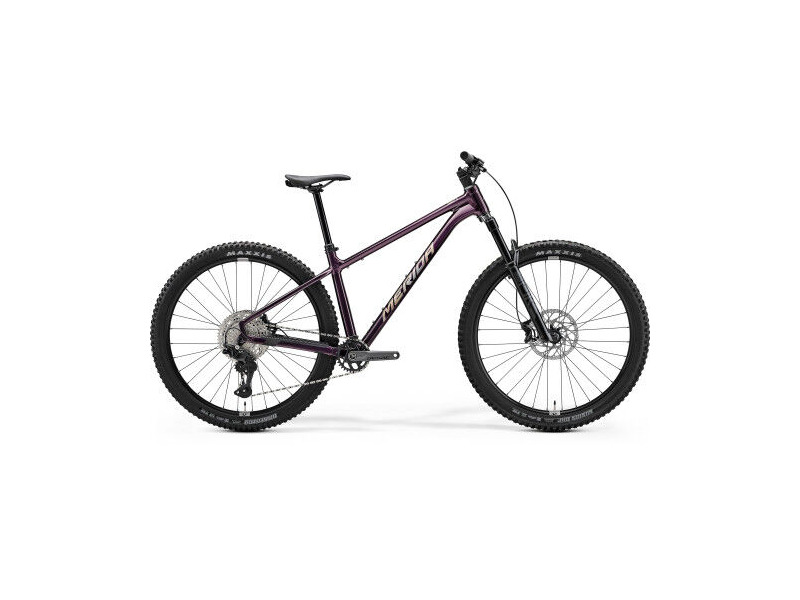

MERIDA Big Trail 600
Pricing
£1800.00
| Model Year | 2027 |
|---|---|
| Options | XS Metallic Purple (Gold Out Of Stock S Metallic Purple (Gold In Stock (Warehouse) M Metallic Purple (Gold Out Of Stock L Metallic Purple (Gold Out Of Stock XL Metallic Purple (Gold Out Of Stock |
| Style | Modern trail bike geometry with long reach, slack head angle and steep seat angle 140mm RockShox Pike Air fork 1 x 12 Shimano Deore drivetrain TRP Slate Evo 4 piston hydraulic disc brakes Dropper seat post 29" Boost standard wheels with Reynolds 309 rims fitted with 2.5" front and 2.4" rear tyres The perfect ingredients for your next trail session - Grin-inducing progressive geometry paired with a tough frame, 140mm RockShox Pike Air fork, Shimano Deore 1x 12 transmission and powerful TRP Slate Evo 4 piston hydraulic disc brakes The original Big Trail concept was the result of a few UK dealers discussing the ideal UK trail bike with the Merida R&D chief - simple: 140mm air fork, 29" wheels, 1 x transmission and a dropper post. Now in its 2nd iteration Big Trail is a fun-packed and hugely capable trail bike. Its progressive geometry combines a steep 76.5° seat angle with a slack 64.0° head angle giving great climbing characteristics and plenty of stability when the terrain gets steep or rough. Sizing follows the Agilometer principle which means most sizes work for most body sizes so that riding style can be factored in. If you want to go fast, take the longer size, for agility, take a shorter size. |
| Frame | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29" x 2.5" |
| Forks | Rock Shox Pike; Air; 140mm travel; tapered; platform; 44mm fork offset; 29x2.6 max. wheel size |
| Rear Derailleur | Shimano Deore M7200; SGS |
| Front Derailleur | N/A |
| Shifters | Front: Shimano SL-MT500-IL Rear: Shimano Deore M6200 |
| Chainset | Shimano Deore M6200; 32 teeth; Crank Length: 165mm for all sizes |
| Bottom Bracket | Shimano MT501; 24mm |
| Chain | KMC X12 |
| Cassette | Shimano Deore M6200; 10-51 teeth; 12 speed |
| Headset | Acros ICR Merida External neck; Upper and lower IPS sealing |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise |
| Handlebars | Merida Expert TR II; aluminium; 780mm wide; 30mm rise |
| Front Brake | TRP Slate Evo HD-M7040; 4 piston |
| Rear Brake | TRP Slate Evo HD-M7040; 4 piston |
| Brake Levers | TRP Slate Evo |
| Rims | Reynolds 309 Enduro Comp; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape installed); 29" |
| Front Hub | Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock |
| Rear Hub | Shimano TC500-MS-B; 148x12mm; 32 spoke; Centerlock |
| Spokes | Double Butted Black stainless w/black nipples |
| Tyres | 29" |
| Front Tyre | Maxxis Minion DHF; 29x2.5"; fold; TR EXO 3C MaxxTerra |
| Rear Tyre | Maxxis Dissector; 29x2.4"; fold; TR EXO+ 3C MaxxTerra |
| Saddle | Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool |
| Seatpost | Merida Expert TR IV; 34.9mm diameter; in-line; 25mm travel adjustability; XShort - 170mm, (Short-Mid) - 200mm, (Long-XLong) - 230mm |
| Grips | Merida Comp TR |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
